Hot Dip Galvanized Gr.50 Gr.65 Electrical Power Poles Round / Tubular / Tapered
  • Hot Dip Galvanized Gr.50 Gr.65 Electrical Power Poles Round / Tubular / Tapered
Hot Dip Galvanized Gr.50 Gr.65 Electrical Power Poles Round / Tubular / Tapered

Hot Dip Galvanized Gr.50 Gr.65 Electrical Power Poles Round / Tubular / Tapered

Menşe yeri China
Marka adı JSHG
Sertifika ISO/CNAS/IAF/CA
Model numarası HG-SP-110KV
Ürün Detayları
Application:
Electrical Power transmission and distribution line
Wall Thickness:
30mm
Material:
Q235, Q345, Gr.50, Gr.65
Shape:
Round / polygonal / Conical / Tubular / Tapered
Appearance Treatment:
Hot-dip galvanized / Painting
Welding:
According to AWS D 1.1, CO2 welding or submerged arc auto methods
Vurgulamak:

electrical power poles

,

electrical transmission poles

Ödeme ve Gönderim Koşulları
Min sipariş miktarı
One 40 HQ Container
Fiyat
negotiation
Ambalaj bilgileri
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Teslim süresi
2 weeks per container after PO / drawing / prepayment confirmed
Ödeme koşulları
L/C, T/T or Western Union
Yetenek temini
3,000 Metric Tons per Month
Ürün Açıklaması

Yield Strength 345 MPA 4mm Electric Galvanized Power Tranmission Pole With Bitumen



Description:





NEA STANDARD FOR STEEL POLES
Height (ft) 25 30 35 40
Top Diameter (mm) 120 127 127 127
Butt Diameter (mm) 152 226 248 317
Thickness (mm) 2.5 3 3 3
Design Load (kg.) 300 500 500 500
Yield Stress (MPA) 345 345 345 345
Zinc Coating (microns) 86 86 86 86

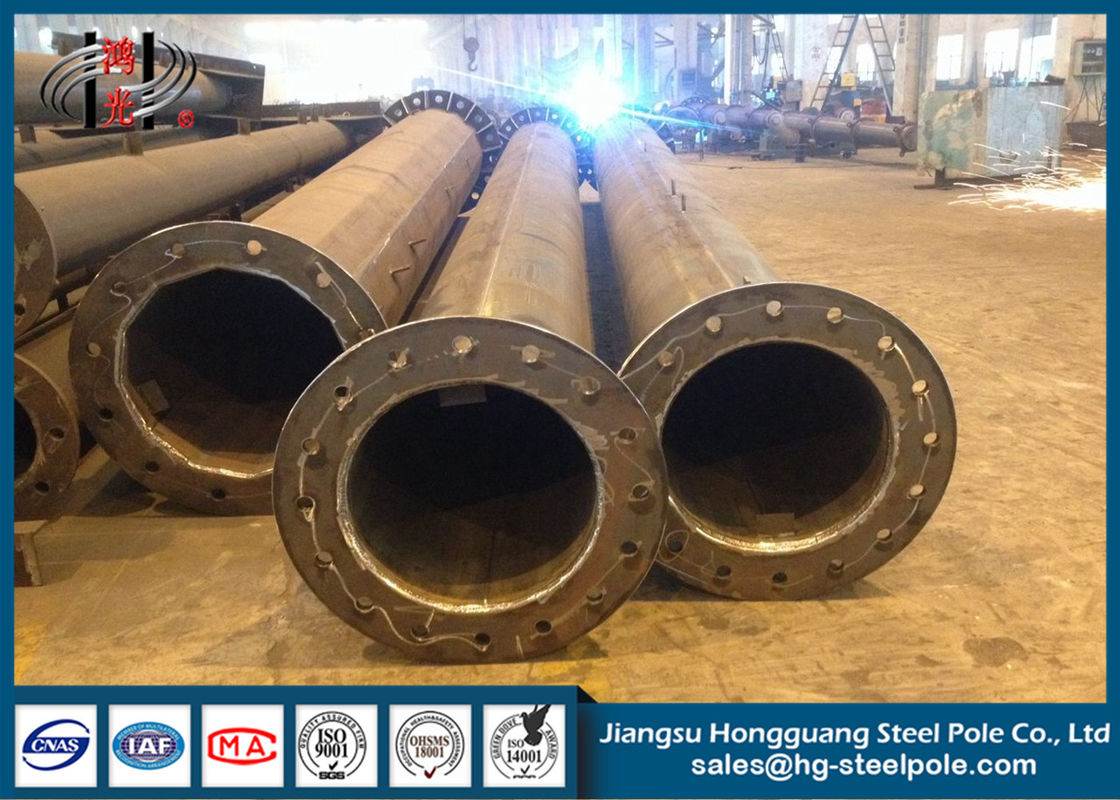

Our steel poles, being manufactured from steel sheet that has been subjected to hydraulic pression and longitudinal welding, has a tapered tubular structure with a multilateral cross section. To achieve a proper height, steel poles can be assembled by insert mode or flange mode at the installation site.



Product Detail :

Hot Dip Galvanized Gr.50 Gr.65 Electrical Power Poles Round / Tubular / Tapered 0



Hot Dip Galvanized Gr.50 Gr.65 Electrical Power Poles Round / Tubular / Tapered 1



Production Process



Hot Dip Galvanized Gr.50 Gr.65 Electrical Power Poles Round / Tubular / Tapered 2







Packaging & Shipping:



Hot Dip Galvanized Gr.50 Gr.65 Electrical Power Poles Round / Tubular / Tapered 3



Hot Dip Galvanized Gr.50 Gr.65 Electrical Power Poles Round / Tubular / Tapered 4





Our Services

  • Reply within 24 Working Hours
  •  Factory Direct Sale
  •  More than 15 Years Design & Manufacture Experience
  •  Capable to Handle Volume Orders
  •  High-Quality and Low-Price Products
  •  Provide Professional Design by Our Experienced R&D Engineers
  •  Rich Exporting Experience
  •  ODM, OEM Acceptable
  •  Technical Support by E-mail
  •  Calling service





Contact Us


Jiangsu Hongguang Steel Pole Co., Ltd.


Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212


Telephone: +86 510 878 441 56


Fax: +86 510 878 435 28


Mobile: +86 138 615 059 69


Skype:  tangjia870124

Please feel free to contact us!



10-500KV Hot Dip Galvanized Electrical Power Steel Tubular Pole Tower for Power Transmission and Distribution Line.pdf
